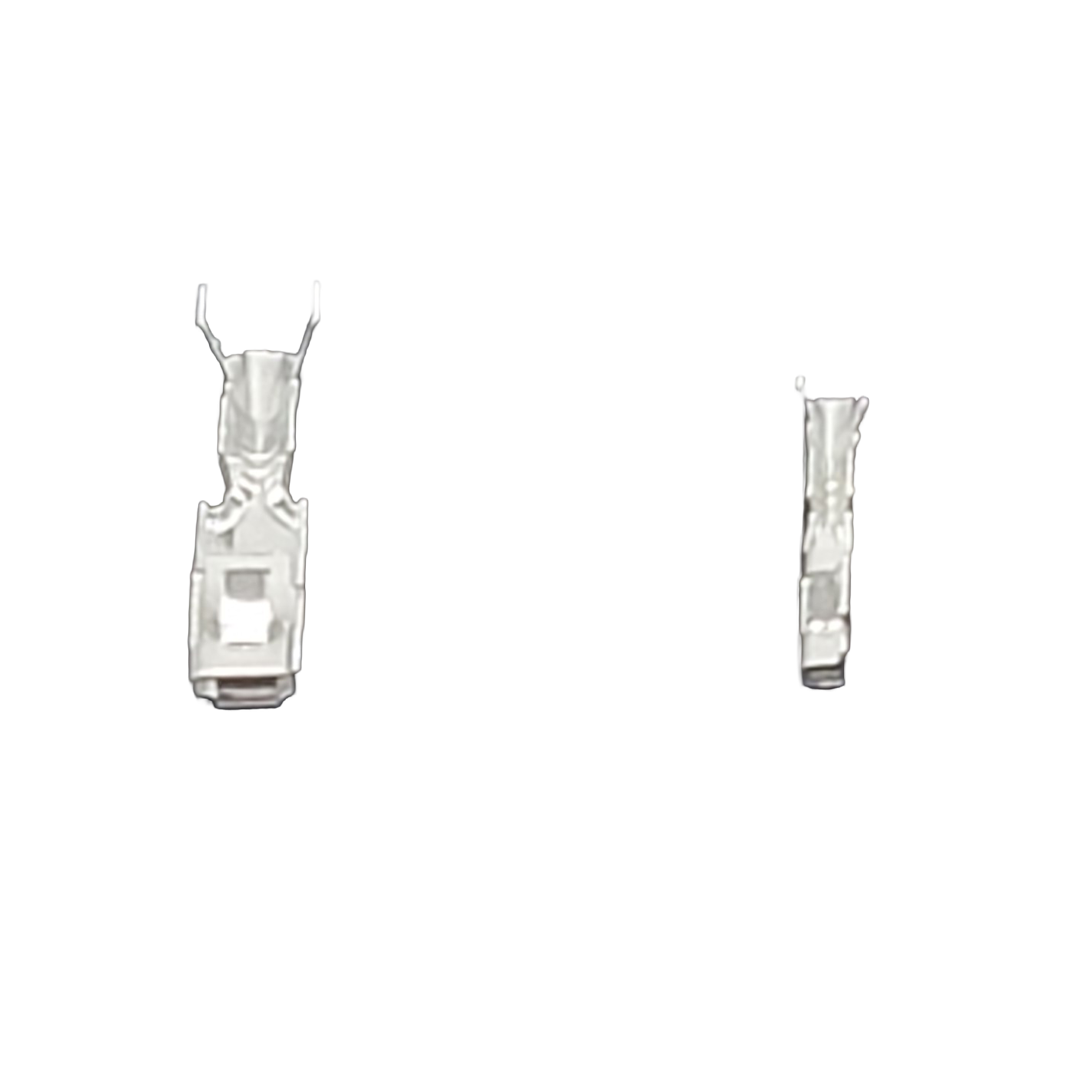

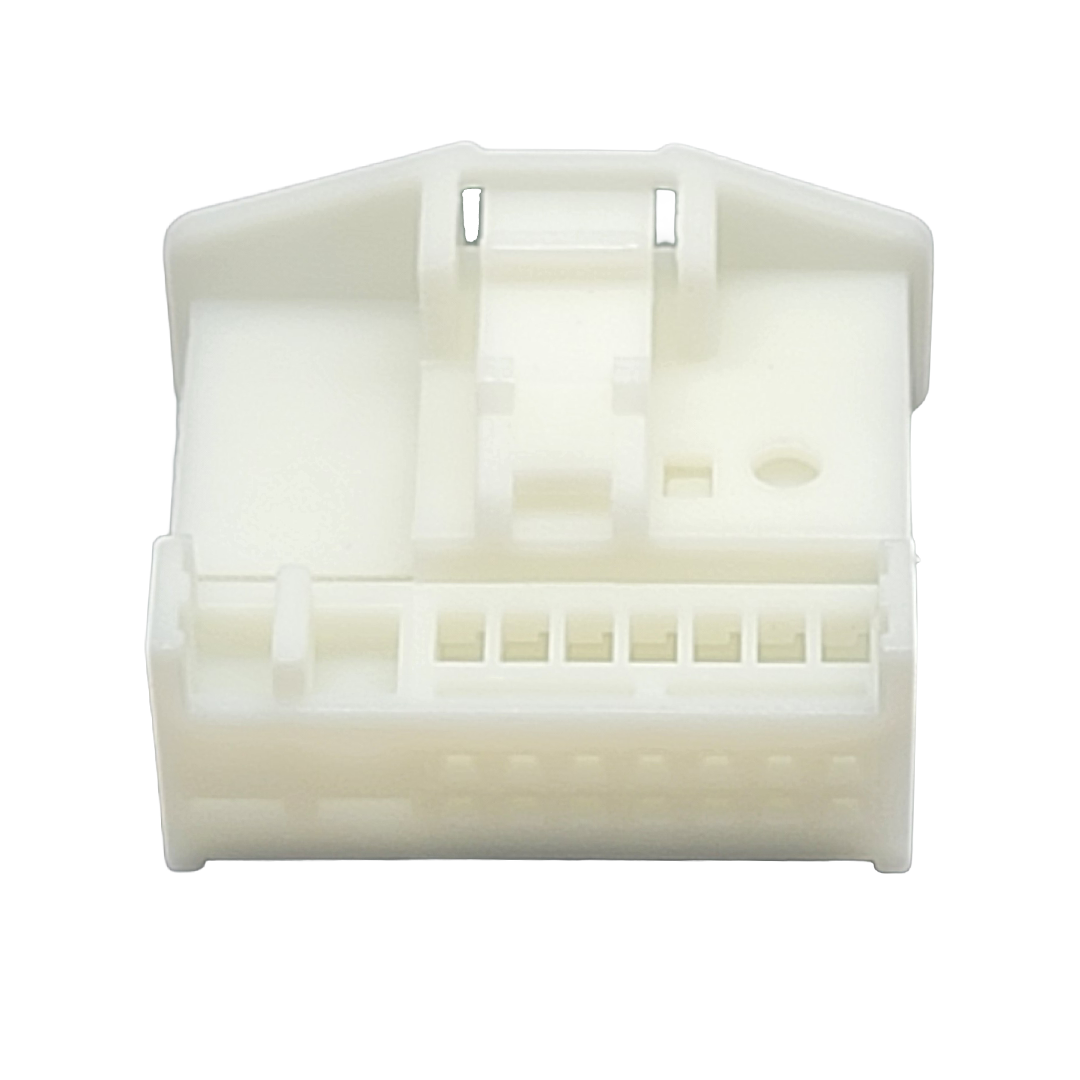

This connector is the main power in and communications connector for most EKPM2s and EKPM3s. Each connector comes with 2 large terminals and 14 small terminals.
The maximum wire gauge that the large terminals can accept is 12 AWG. Do not attempt to use a 10 AWG wire with the terminals as it will not create a proper crimp. Do not solder wires to the terminals.
Our recommendation is to use 12 AWG Tefzel, TXL or GXL wire when replacing the factory power and ground wires.
This connector fits the following EKP modules:
Links to part #'s for more info provided by Realoem.com
- 16147229173
- 16147218339
- 16147209286
- 16147054041
- 16147203993
- 16147180426
- 16147169960
- 16147163505
- 16147163504
- 16146763811
- 16146765705
- 16146764716
- 16147371832
- 16147358144
- 16147301554
- 16147276073
- 16147268462
- 16147264011
- 16147240389
- 16147229175
- 16147219343
- 16147411596
- 16147454559
- 16147398495
- 16147376866
- 16147368349
- 16147358145
- 16147353864
-
16147344265
16147411595
- The connector also fits any EKPM2 or EKPM3 that has the purple / maroon connector.
The terminals must be properly crimped without bending to ensure a proper connection. Bending the terminals during crimping or installation will result in premature failure. Professional installation is highly recommended!
