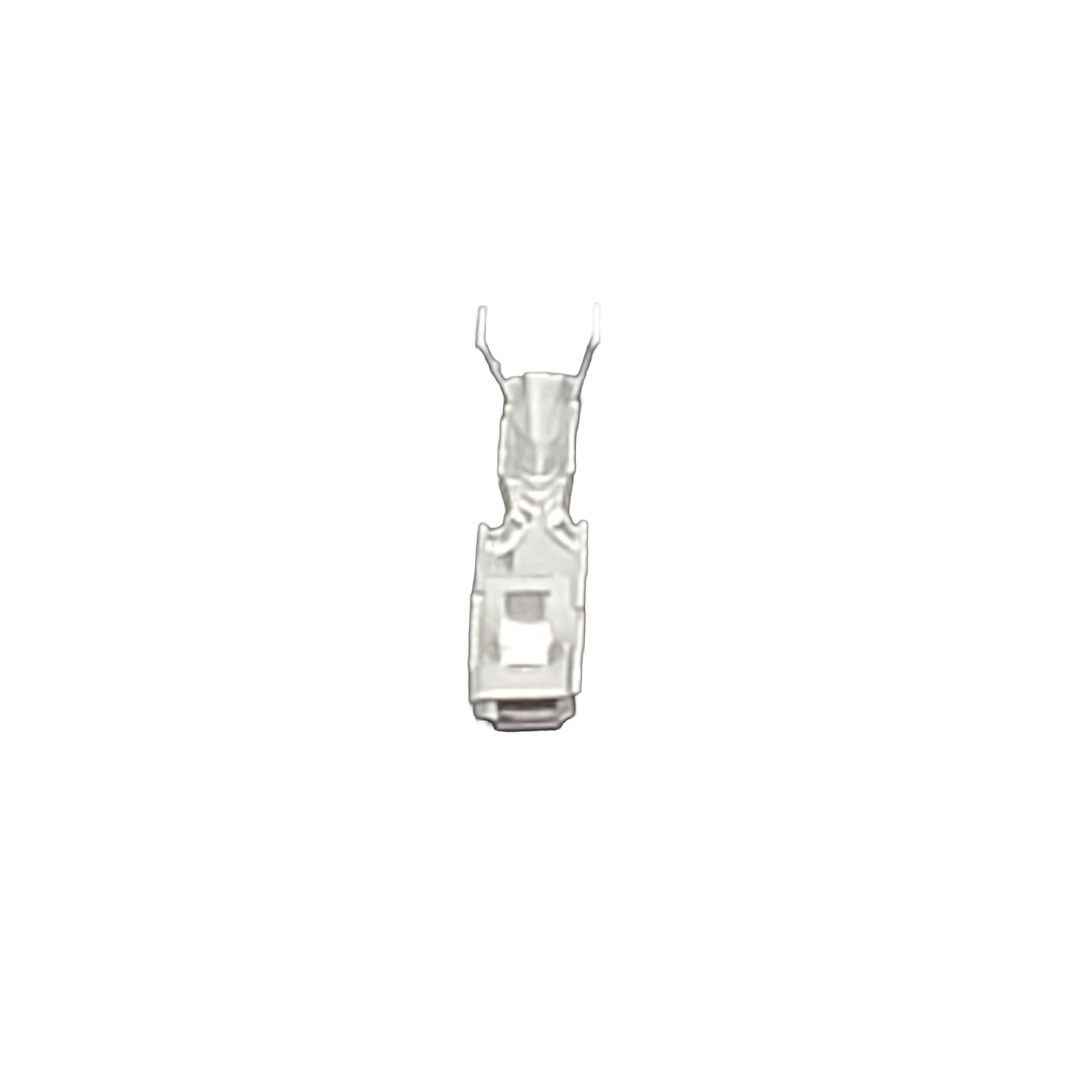

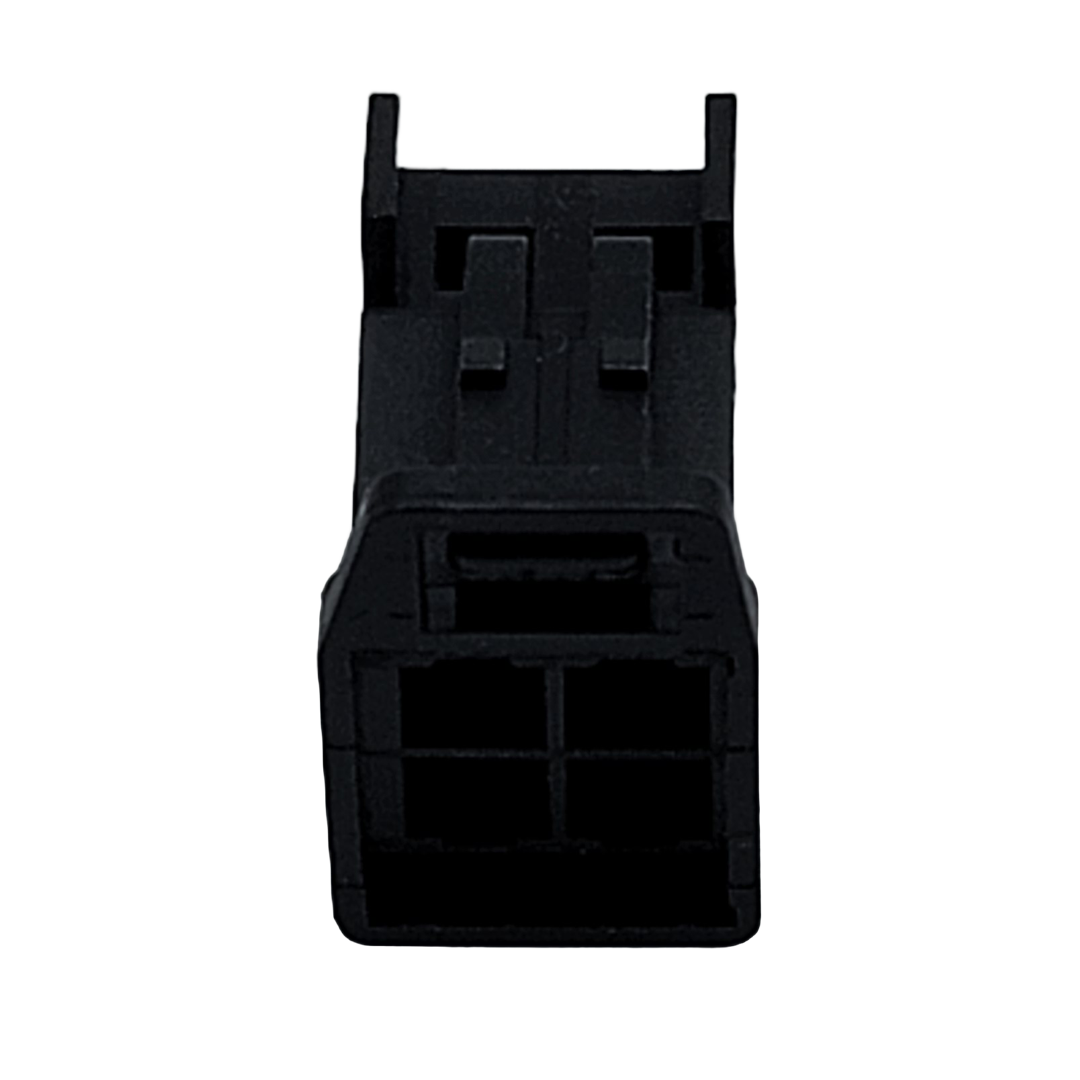

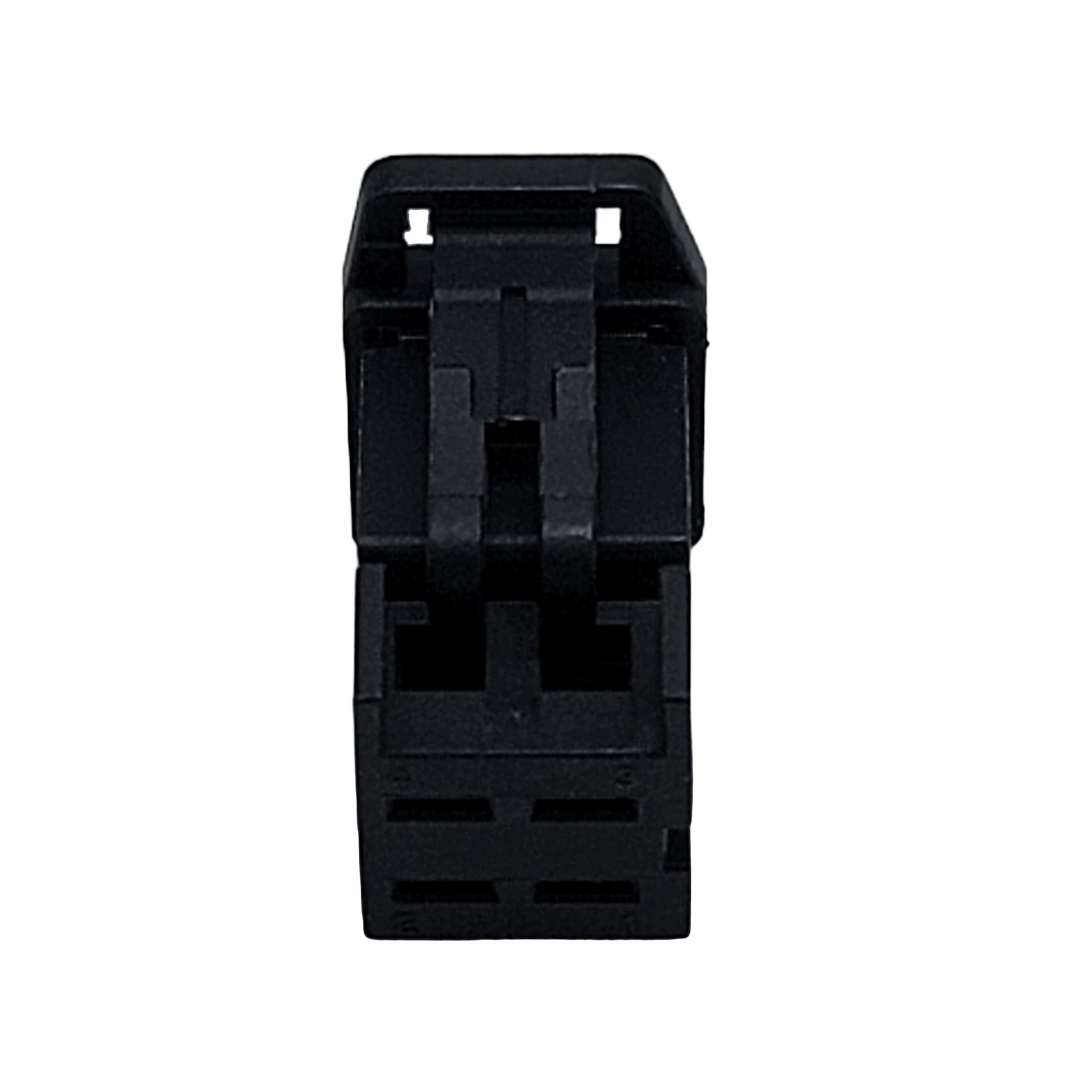

This connector is the power out to the low pressure fuel pump connector for most EKPM2s and EKPM3s. Each connector comes with 4 terminals.
The maximum wire gauge that the terminals can accept is 12 AWG. Do not attempt to use a 10 AWG wire with the terminals as it will not create a proper crimp. Do not solder wires onto the terminals.
Our recommendation is to use 12 AWG Tefzel, TXL or GXL wire when replacing the factory power and ground wires.
This connector fits the following EKP modules:
Links to part #'s for more info provided by Realoem.com
- 16147229173
- 16147218339
- 16147209286
- 16147054041
- 16147203993
- 16147180426
- 16147169960
- 16147163505
- 16147163504
- 16146763811
- 16146765705
- 16146764716
- 16147371832
- 16147358144
- 16147301554
- 16147276073
- 16147268462
- 16147264011
- 16147240389
- 16147229175
- 16147219343
- 16147411596
- The connector also fits any EKPM2 or EKPM3 that has the purple / maroon connector.
The terminals must be properly crimped without bending to ensure a proper connection. Bending the terminals during crimping or installation will result in premature failure. Professional installation is highly recommended!
